Showing results 1 to 25 of 240 Search:
Forum: Pentax Q 01-22-2020, 03:47 AM
Reversed 03 fish-eye on KP
Posted By 2old4toys
Replies: 14
Views: 764
So I can use my Pentax Qís PK adaptor with mechanical shutter and reverse mount the 03 FE just like you did here but on Q. Atomic scale macro.
Forum: Pentax Q 01-21-2020, 09:17 PM
Pentax Q mount macro reverse rings
Posted By 2old4toys
Replies: 19
Views: 1,503
Holy moly imagine the magnification of a reversed 03 fisheye on a Q body!
Forum: Pentax Q 01-21-2020, 12:20 AM
Repairing Q lenses
Posted By 2old4toys
Replies: 5
Views: 507
When mounted does it make any noises when you press the shutter button?
Forum: Pentax Q 01-16-2020, 09:42 PM
Soratama for Pentax Q
Posted By 2old4toys
Replies: 25
Views: 2,809
Yes it is smaller!
Forum: Pentax Q 01-16-2020, 09:21 PM
Soratama for Pentax Q
Posted By 2old4toys
Replies: 25
Views: 2,809
Nifty on a Q-S1
Forum: Pentax News and Rumors 01-09-2020, 03:28 AM
PENTAX Q-S1 Discontinued
Posted By 2old4toys
Replies: 45
Views: 2,831
Anywhere validate a discontinuation?


Twitter
Forum: Pentax Q 11-27-2019, 06:44 PM
Pentax Q on USB powerbank?
Posted By 2old4toys
Replies: 35
Views: 5,746

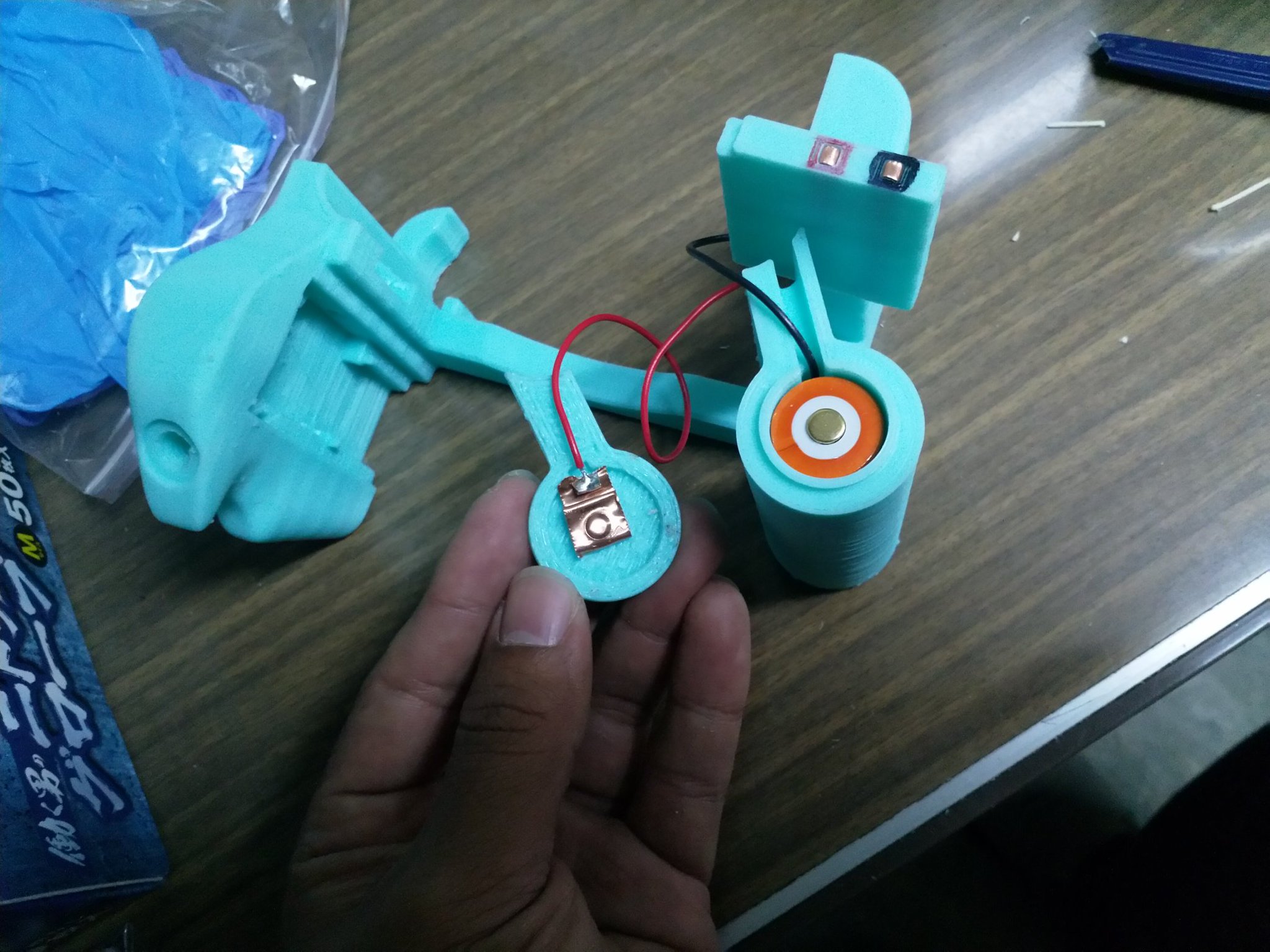

As I mentioned earlier, the USB leads to inefficiency so just link the cell directly Is fine. This guyís 3D printed contraption is pretty much what I wanted to do. He is amazing. He put a compartment in the right hand grip to hold an IR remote with a trigger. The left handle cylinder to hold a very generous 3000mAh power cell. Twitter
Forum: Pentax Q 11-26-2019, 12:45 AM
Pentax Q on USB powerbank?
Posted By 2old4toys
Replies: 35
Views: 5,746
No more developments needed, because of this...

TwitterLink

Forum: Pentax Q 11-20-2019, 01:00 AM
How many Q bodies do you have?
Posted By 2old4toys
Replies: 26
Views: 1,310
Black original Q body
White original Q IR cut removed
Gold Q10 (sold)
Silver/Red QS1 body
Black QS1 body
Genuine PENTAX K-Q adapter
01,02,03,06,07,08 lenses and hoods.
Bunch of Q-C adaptors and a Q-CS
Bunch of C lenses and a few CS lenses
Q macro tubes


Mostly bought used. Some accessory items bought new.

All bought In past year.
Forum: Pentax Q 11-03-2019, 07:21 PM
Why are the Q's so expensive??
Posted By 2old4toys
Replies: 81
Views: 8,858
Not expensive at all given the frequency of use I have gotten out of it due to its small size to carry on trips TOGETHER with a handful of lenses. Barely an inconvenience. The 08 I finally managed to pick up used and glad I have it at hand. Worth it!
Forum: Pentax Q 11-02-2019, 09:35 PM
Let's share shots with Q!
Posted By 2old4toys
Replies: 6,339
Views: 959,242
QS1 06 lens at 45mm F2.8 1/500s iso 100.
Forum: Pentax Q 10-07-2019, 09:55 PM
Soratama for Pentax Q
Posted By 2old4toys
Replies: 25
Views: 2,809
The 72mm is more readily available and yes will work with many more lens / camera body combo options and also give you more area around the sphere to frame without vignettes. 52mm on the other hand is ideally sized for my Q series cameras, hence gets to come out with me on my travels far more often than the 72mm soratama does.
Forum: Pentax Q 10-03-2019, 07:37 PM
Pentax c-mount 75mm f/1.4
Posted By 2old4toys
Replies: 13
Views: 728
I have a tiny CS lens marked 12megapixel that is pretty much as sharp as a Pentax 02 native lens. Look out for the megapixel count on those C lenses!
Forum: Pentax Q 09-01-2019, 07:15 AM
IR infra red conversion for Pentax Q cameras
Posted By 2old4toys
Replies: 10
Views: 6,398
Using a Pentax 02 lens and the Hoya R72 on my Q without the IR cut filter. Will have some other IR pass filters to try out soon.




A surprise finding. Same 02 lens but this time with a cheap variable ND when set to max by eye looks black, blocking out the visible spectrum but I found it is actually still letting through IR! The output is pretty stark. Quite handy being able to change the strength of the IR effect with a quick twist of the front filter vs swapping in a dedicated IR filter like the Hoya R72. Maybe some polarisation is happening to the IR too and perhaps not the best way for an IR pass, but at a pinch itís a neat trick!


Taken with variable ND at max.


Turning a variable ND to control IR!
Forum: Pentax Q 08-30-2019, 02:58 AM
Why doesn't anyone make a CS adapter for the Q?
Posted By 2old4toys
Replies: 28
Views: 4,500
Show us a pic of your CS mount and lens combo.

BTW I have a new tip to greatly reduce and dampen any unwanted wiggle space between the camera body and a body cap. Use a small thin hair band elastic. Colour of your choice. Just Wrap it around the bayonet of the bodycap. I can now happily adjust focus and aperture without the bodycap shifting around excessively.

Unmounting the lens is fine, the hair band stays gripped on the lens end of the bayonet.
Forum: Pentax Q 08-25-2019, 10:52 PM
IR infra red conversion for Pentax Q cameras
Posted By 2old4toys
Replies: 10
Views: 6,398
Adding back a pane of 0.5mm ordinary glass works to restore AF to infinity in IR tested positively on my 01, 02 and 08 lenses. Expect that other Pentax Q lenses will also be fine to focus to infinity in IR now. However... I can tell that some AR multicoated glass will be even better.
Would love to try this Q on UV photography/video too but a lot more costly for the right UV filter.

The rubber gasket is under the glass and I put back the frame on top. Just taped it to the front of the sensor box temporarily.

Rainy days prevent me from getting more sample IR shots using native Q lenses.
Forum: Pentax Q 08-20-2019, 08:45 PM
IR infra red conversion for Pentax Q cameras
Posted By 2old4toys
Replies: 10
Views: 6,398
@geo444 admit the camera body was pretty filthy and without a body cap when I received it. Lord knows how long it was left exposed like that and the environment it was in. However, once inside the opened up sensor box, the sensor itself under the IR cut was fresh and spotless! I want to keep it that way for as long as possible. What do you do to keep it clean?

1st thought is to lay clean glass on top of the sensor box so keep parallel with the sensor. Will find out this weekend as I have some 0.5mm thick glass coming in that I will trim to fit. Fingers crossed.

Forum: Pentax Q 08-17-2019, 03:43 AM
IR infra red conversion for Pentax Q cameras
Posted By 2old4toys
Replies: 10
Views: 6,398
Further notes.
Whilst lifting out the IR cut glass, you will feel the ribbon cable tethered to the bottom. Due to the awkward placing, I could not find a way to cut it off neatly and ended up gently tearing it off the glass instead. I donít see any resulting error messages when activating the dust shake, which of course is in any case rendered a useless feature after this mod.

Without replacing the 0.6mm thick IR cut glass, 01 and 02 lenses wonít AF/manual focus to infinity any more. However my modded infinity focusing Pentax 07 shield mount looks ok with itís usual signature blurry edges, only now with IR! Added a Hoya R72 filter screwed to front to get rid of some visible spectrum. Did a fresh custom white balance and the live view becomes semi monochromatic. Some blues showing through. ISO 125, 1/100s handheld lunch break shot.

I am still looking for some ordinary glass to replace the removed IR cut glass. Hopefully it will result in my AF enabled PQ lenses to be able to focus to infinity in the IR spectrum. Not so keen on the alternative to shave the mount thinner if I can avoid it.

I hope this helps others get into fast shutter IR on a Q! No need to smash any glass and no complex disassembly and reassembly of the Q and Q10. For a quick full spectrum mod, all you need is a sharp hobby knife. Would not surprise me if the Q7 or Q-S1 would be very similar.
Forum: Pentax Q 08-15-2019, 11:05 PM
IR infra red conversion for Pentax Q cameras
Posted By 2old4toys
Replies: 10
Views: 6,398



Pentax Q, Q10-IRcut, most Sensitive Sensor ILC

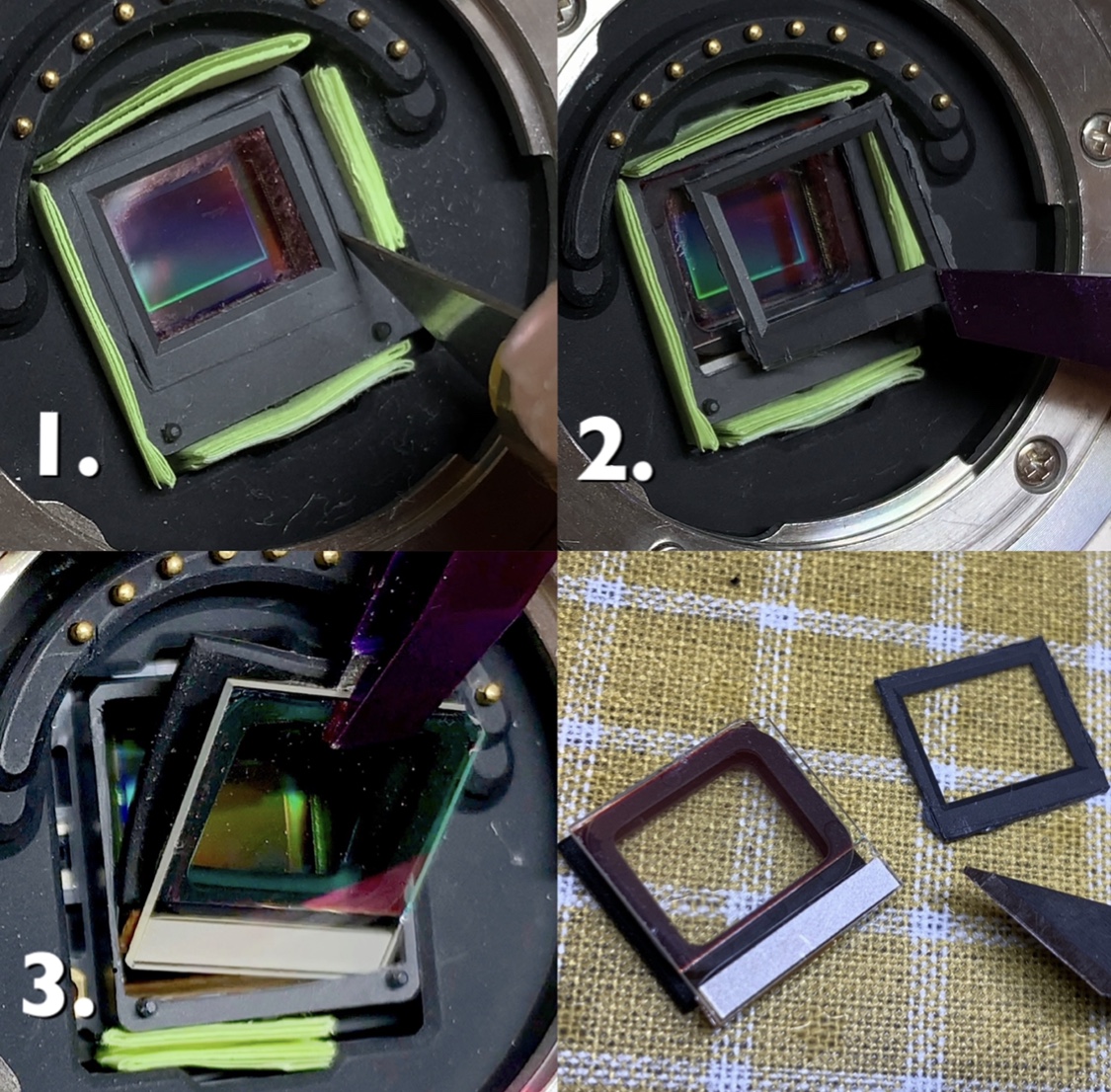

Successfully modded a spare Q by removing itís IR cut filter glass. Thanks again to goe444ís very detailed instructions that gave me sufficient confidence to proceed.
It wasnít difficult to perform. Use folded bits of paper post-it notes to steady the sensor box. Use a fresh sharp hobby knife blade.The plastic is softer than I thought it would be. Score it a few times till you feel it pop through. If I were to do it again I might be able to preserve more of the bottom lip of the sensor box frame. I would also have at hand some glass to cover up the sensor ASAP after removing the ir cut filter to reduce chances of contamination.
The rubber gasket under the ir cut filter is not glued in place at the base but lightly adhered to the glass.

As this point the camera is full spectrum, taking in a mix of both the visible and IR light.
Forum: Pentax Q 08-14-2019, 10:54 PM
Let's share shots with Q!
Posted By 2old4toys
Replies: 6,339
Views: 959,242
Oh boy its terrifying whenever I am behind one of those tankers. The mirrored surface is hypnotic. I just can not stop staring at myself driving towards myself at speed into a warped fisheye tunnel. Mind bending.
Forum: Pentax Q 08-14-2019, 10:29 PM
Let's share shots with Q!
Posted By 2old4toys
Replies: 6,339
Views: 959,242
Pentax Q-S1 with 08 lens at f3.7 8sec exposure ISO 100.
Forum: Pentax Q 08-07-2019, 04:05 AM
M&R Optics 3D printed accessories for Pentax Q series cameras
Posted By 2old4toys
Replies: 6
Views: 1,253

3D printed grip with IR shutter release and magnifying viewfinder contraption for the Q-S1 This is 2019!
https://mobile.twitter.com/st00dw00d/status/1158008831835697153
Forum: Pentax Q 08-06-2019, 05:50 PM
M&R Optics 3D printed accessories for Pentax Q series cameras
Posted By 2old4toys
Replies: 6
Views: 1,253
NEW Integrated variable aperture 3D printed adaptor prototype for Pentax 110 lenses.


https://mobile.twitter.com/kanade_snowlit/status/1157588710247919616
Forum: Pentax Q 08-04-2019, 02:44 AM
Why doesn't anyone make a CS adapter for the Q?
Posted By 2old4toys
Replies: 28
Views: 4,500
Teensy little flowers shot on an original Q iso 200 1/800s with a 5 megapixel 8mm CS lens fixed aperture. Maybe F2 ish? Keep cranking to focus very close up.

Forum: Pentax Q 08-03-2019, 11:08 PM
Let's share shots with Q!
Posted By 2old4toys
Replies: 6,339
Views: 959,242
Pentax Q-S1 1/800s Tamron 75mm f3.9
